ABSOLUTE FILTER CARTRIDGES

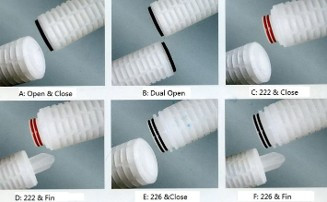

Membrane Pleated Filter Cartridge - High Purity Absolute Micron Rating
Avanale High Precision, High Purity, Polypropylene Pleated Filter Cartridges are constructed of micro polypropylene media and nonwoven or silk net support. Adaptors are thermal welded with cartridges without using any glues. This results in no possibility of secondary contamination leaching from the filter.
FEATURES:
•High surface area design provides superior flow rate and high dirt holding capacity
•Low pressure drop & long service life
•Using 100% virgin polypropylene media with extensively applications
•Wide micron rating range.
APPLICATIONAS:
•Food & Beverage, Semiconductor, Medical & Pharmaceutical
•Solvents, Acid and ink Pre-Filtration for RO & Bottled Water, pure water loops.
SPECIFICATIONS:
•Filter Media & Support Material: Polypropylene
•Outside Diameter: 70mm; Inner Diameter: 28mm; Length: 10", 20" ,30" ,40"
•Micron Rating: 0.1 u m, 0.22 u m, 0.45 u m, 1 u m, 3 u m, 5 u m, 10um, 20um, 50um
WHILST WE ONLY STOCK SEVERAL SIZES, WE HAVE ACCESS TO A FULL RANGE - INCLUDING ENDOTOXIN FILTERS
MTMPP-0022-10-DO
|
0.22 Micron 10” x 2.5” Dual Open Absolute Filter
|
MTMPP-0022-20-DO
|
0.22 Micron 20” x 2.5” Dual Open Absolute Filter
|
MTMPP-1000-10-DO
|
10 Micron 10” x 2.5” Dual Open Absolute Filter
|
